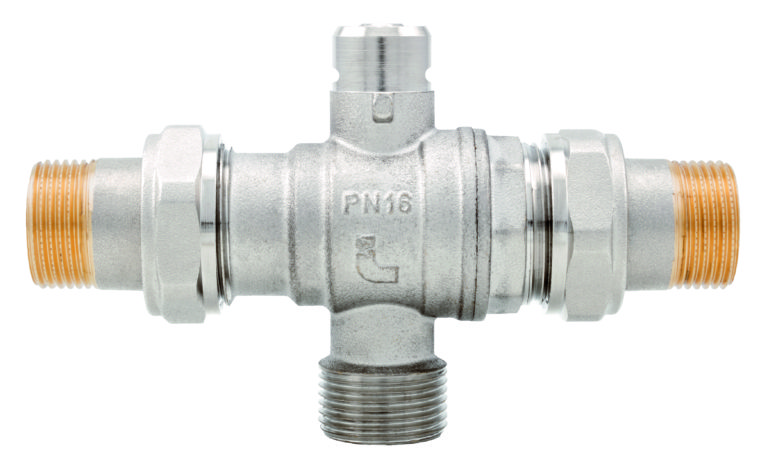

ART.984 3-WAY ZONE BALL VALVE

Nickel-plated brass body.
Balls with full bore.
Maximum working pressure: 16 bar.
Maximum differential pressure: 10 bar.
Minimum and maximum operating temperature: -10 °C (with antifreeze solution), 100 °C.
Threaded connections ISO228 (corresponds to DIN EN ISO 228 and BS EN ISO 228).
Can be combined with servo controls 990 e 991.
