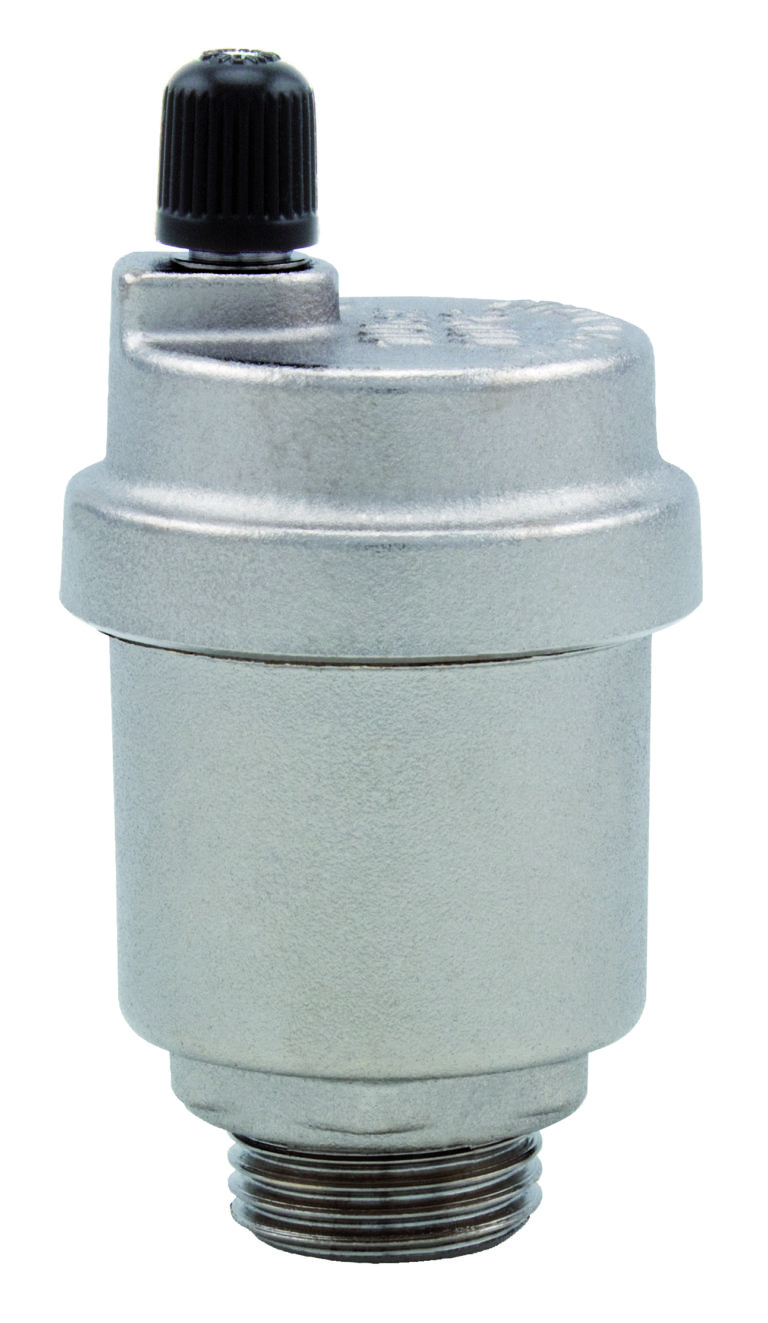

ART. 362R AUTOMATIC BLEED VALVE, COMPACT VERSION

Nickel-plated brass body.
Polyethylene resin float.
Maximum operating temperature: 110 ° C.
Maximum pressure for an op 6 bar.
Thread connections: ISO228 (corresponds to DIN EN ISO 228 and BS EN ISO 228).

Abmessungen	Druck	Code	Verpackung
3/8 "	10bar / 145psi	3620038R	10/120
1/2 "	10bar / 145psi	3620012R	10/120

Dimensionspdf - 511435 kb Materialspdf - 2065750 kb Declaration of conformitypdf - 573396 kb

Weitere Informationen finden Sie hier zum Herunterladen !
